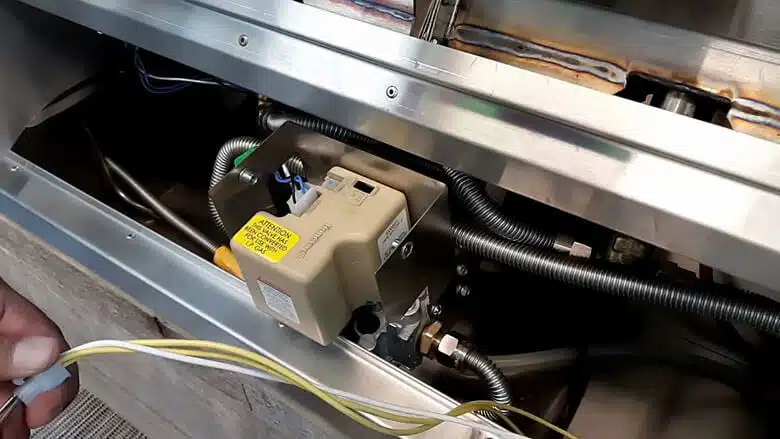

To troubleshoot a Honeywell SV9541, check if the roll out switch reset has tripped and make sure the pressure switch (if installed) is not open. If these steps do not work, verify the pressure switches are not miswired or jumpered and that the ignition system control switch is in the ON position.
Also, check if the pilot flame and flame rod are making good contact, and that the pilot burner bracket is not misaligned or bent. The Honeywell SV9541 is a type of smart valve furnace that controls the flow of gas to the burner.
It operates using an ignition system, flame rod, and pressure switches. To help ensure efficient operation, it should be maintained and promptly repaired if it malfunctions. We will discuss some common Honeywell SV9541 troubleshooting techniques that can help you keep your furnace working correctly.
How Do Smart Valves Work?
Contents
Smart valves are used in gas furnaces to control the flow of gas to the burner. Honeywell SV9541 is a type of smart valve that operates in heat mode, with an igniter and flame rod, and safety switches. Troubleshooting may involve checking the roll-out switch reset and the pressure switch’s operation, tubing, and wiring.
Types Of Smart Valves
Smart valves for gas furnaces come in different varieties. Some types include the Honeywell SV9500, SV9501, SV9502, SV9600, SV9601, SV9602, and SV9603 series smart gas valves. Each of these valves has specific functions that help to improve your furnace’s performance. For instance, some have self-calibrating features that adjust gas flow to optimize heating efficiency. Other valves have diagnostic functions that help to indicate fault conditions if they arise.
Wiring Explanation
Smart valves have several electrical wires that control the device’s functions. The furnace sends a signal to the control board, which activates the smart valve. There are typically three wires that operate the smart valve: one for power, one for the gas valve, and one for the igniter and flame sensor. The gas valve wire controls the gas flow to the burner, while the igniter and flame sensor wire work together to ignite the gas and detect the presence of a flame.
Condensate Trap
The condensate trap is an important component of the smart valve. Its purpose is to prevent condensation from forming in the furnace, which can cause damage to the furnace and reduce its efficiency. The trap removes moisture from the combustion process, allowing the furnace to operate effectively.
Heat Mode Operation
During heat mode operation, the smart valve receives the signal to ignite the burner. The igniter generates heat, which ignites the gas from the gas valve. As the gas ignites, the flame sensor detects the presence of the flame and sends a signal to the control board. The control board then sends a message to the fan blower to circulate the warm air throughout the house.
Igniter And Flame Rod
The igniter and flame rod are two electrical components that work together to ignite and detect the flame. The igniter generates the necessary heat to ignite the gas, while the flame rod detects the presence of the flame. The flame sensor sends a message to the control board, indicating whether the flame is present or not. If there is no flame, the control board will shut off the gas valve.
Blower Compartment Wiring
The blower compartment wiring connects the furnace’s blower to the control board. The control board sends a signal to the blower to circulate warm air throughout the house. The blower compartment wiring contains several electrical components, including capacitors, relays, and transformers.
Safety Switches
Smart valves have several safety switches that protect the furnace from damage. For instance, the pressure switch ensures that there is adequate air pressure before igniting the gas. Rollout switches detect when the furnace overheats. High-limit switches detect when the furnace overheats and may cause a fire.
Thermostat Wiring
The thermostat wiring connects the furnace to the thermostat. The thermostat sends a signal to the control board, indicating when to turn the furnace on or off. The control board then sends a signal to the smart valve to ignite the burner.
Shut Off The Pressure Switch
If you are troubleshooting a Honeywell SV9541 smart valve, one of the steps is to shut off the pressure switch. This switch detects the presence of adequate air pressure before igniting the gas. By shutting off this switch, you can reset the valve and allow it to operate correctly again. The switch can be located either on the draft inducer or on the furnace’s body.
In conclusion, understanding how smart valves work is crucial in troubleshooting any furnace issues. If you encounter any problems with the Honeywell SV9541 smart valve, identify the problem and follow the manufacturer’s instructions to resolve the issue. By doing so, you can increase the efficiency and longevity of your furnace.
Honeywell Sv9541 Troubleshooting Smart Valve
To troubleshoot a Honeywell SV9541 Smart Valve, start by ensuring the pilot flame and flame rod are making good contact and that the pilot burner bracket is properly aligned. Check for any miswiring or open switches, and make sure the pressure switch is not tripped.
Cleaning The Pilot Assembly
If your Honeywell Smart Valve is not working properly, there could be a problem with the pilot assembly. The pilot assembly can become dirty or clogged over time, which can cause the valve to malfunction. To clean the pilot assembly, turn off the gas supply and allow the assembly to cool down. Then, remove the pilot hood and clean the orifice with a wire brush or compressed air. Be sure to also clean the thermocouple tip and pilot burner with a soft-bristled brush.
Hot Surface Igniter Test
If the pilot assembly is clean and the valve is still not working, you can troubleshoot the Honeywell Smart Valve with a hot surface igniter test. First, turn the gas supply and thermostat off. Then, remove the igniter from the valve and test for continuity with a multimeter. If continuity is detected, the igniter is working properly.
Testing Ignitor Voltage
If the hot surface igniter test passes, the next step is to test the ignitor voltage. Turn the thermostat on and check the voltage at the smart valve with a voltmeter. The voltage should be between 11 and 14 volts. If the voltage is too low, the ignitor may not have enough power to ignite the gas.
Cleaning Ignitor Rod
If the ignitor voltage is normal, the next step is to clean the ignitor rod. Over time, the ignitor rod can become dirty or corroded, which can cause it to malfunction. To clean the ignitor rod, turn off the gas supply and allow the rod to cool down. Then, carefully remove the rod and clean it with a soft-bristled brush and rubbing alcohol. Once the rod is clean, reattach it to the valve and test the unit again.
Flame Sensor Voltage Measurement
If the ignitor rod is clean and the valve is still not working, the problem could be with the flame sensor. To test the flame sensor, turn the valve on and check the voltage at the sensor with a voltmeter. The voltage should be between 1.5 and 3 volts. If the voltage is too low, the flame sensor may not be working properly.
In conclusion, troubleshooting a Honeywell Smart Valve requires a methodical approach to identify and fix any issues. By following these steps, you can effectively troubleshoot the valve and get it working properly in no time.
Common Honeywell Smart Valve Problems
Honeywell SV9541 troubleshooting can be challenging, as it is prone to common issues such as the pilot light not staying lit, the unit shutting off unexpectedly and the valve failing to open. Proper maintenance and timely repairs can help prevent these problems and keep your system running efficiently.
If your Honeywell Smart Valve is not working as expected, there may be a range of potential problems that need to be addressed. Here are some of the most common issues associated with Honeywell Smart Valves and how to troubleshoot them.
Condensation In Ignition Intake
One common problem that can occur with Honeywell Smart Valves is the buildup of condensation in the ignition intake system. This can result in the valve not working properly or failing to ignite. To fix this issue, all you need to do is carefully remove the igniter and clean any debris or moisture from the area. This should resolve the issue and get the valve working correctly again.
Pressure Switches Miswired Or Jumpered
If your Honeywell Smart Valve is not working correctly, there may be an issue with the pressure switches being miswired or jumpered. This can result in the valve failing to ignite or heating up sufficiently. To troubleshoot this issue, you will need to locate the pressure switches on the valve and check the wiring to ensure it is connected correctly. In some cases, you may need to replace the pressure switches entirely to get the valve fully operational.
If you are experiencing other issues with your Honeywell Smart Valve, it is recommended that you consult the manufacturer’s manual or seek professional help from an experienced technician. Investing in regular maintenance and repair services can go a long way in ensuring the optimal operation of your Honeywell Smart Valve and avoiding any issues further down the line.
Frequently Asked Questions
How Do You Test A Honeywell Igniter?
To test a Honeywell igniter, follow these steps:
- Clean the igniter rod
- Test the igniter voltage
- Measure the flame sensor voltage
For more information on troubleshooting a Honeywell smart valve, refer to online resources or seek the help of an HVAC professional.
How Does Honeywell Smart Gas Valve Work?
The Honeywell smart gas valve controls the flow of gas to the burner in a furnace. It operates in heat mode by combining an ignitor and flame rod and has safety switches to shut off pressure when necessary. Troubleshooting the valve involves checking the pilot flame and bracket and ensuring correct wiring.
What Does A Honeywell Gas Valve Do?
A Honeywell gas valve is a device that controls the flow of gas to a burner. It is found on many gas appliances, including furnaces, water heaters, and boilers. The valve opens to allow gas to flow when it receives a signal from the appliance’s thermostat, and then closes when the desired temperature is reached.
What Is A Smart Valve On A Furnace?
A smart valve on a furnace is a device used to control the flow of gas to the burner, ensuring efficient operation. It is an advanced technology that enables furnaces to operate safely and efficiently with fewer emissions. The valve can be programmed to adjust the gas flow according to the specific heating demands, making it more energy-efficient and cost-effective.
Troubleshooting a smart valve requires checking the pilot flame, igniter, and flame rod’s alignment and ensuring proper gas pressure.
Conclusion
Troubleshooting a Honeywell SV9541 furnace might seem daunting, but with the right knowledge and steps, it can be a fairly straightforward process. From testing the ignitor and flame sensor to checking the wiring and pressure switches, there are many things you can do to solve the problem and get your furnace working again.
By following the helpful tips and tricks provided in this post, you’ll be well on your way to solving any issues you might encounter with your Honeywell SV9541 furnace.
