Power Gear Leveling System troubleshooting involves checking electrical connections and hydraulic fluid levels. Ensure the control panel is functioning properly.
The Power Gear Leveling System is essential for maintaining stability in RVs and motorhomes. Proper function ensures a smooth and safe experience while parked or on uneven terrain. Troubleshooting issues with this system can prevent costly repairs and ensure your travel plans remain uninterrupted.
Common problems often relate to electrical connections, hydraulic fluid levels, and control panel malfunctions. Addressing these issues promptly keeps your leveling system in top condition. Regular maintenance and timely troubleshooting can extend the life of your leveling system and enhance your overall RV experience. Understanding the basics of troubleshooting can save you time and money.
Introduction To Power Gear Leveling Systems
Contents
- 1 Introduction To Power Gear Leveling Systems
- 2 Initial Setup Precautions
- 3 Identifying Common Issues
- 4 Basic Power Gear Leveling System Troubleshooting Techniques
- 5 Electrical System Checks
- 6 Hydraulic System Maintenance
- 7 Sensor Calibration And Alignment
- 8 Advanced Fixes For Persistent Issues
- 9 Preventative Measures And Best Practices
- 10 Frequently Asked Questions
- 11 Conclusion
Power Gear Leveling Systems are essential for RV stability. They provide a stable base for RVs, making camping more comfortable. This system ensures your RV remains level on uneven ground. It helps prevent unnecessary wear and tear. Understanding how it works can save you time and headaches on the road.
The Role In Rv Stability
Power Gear Leveling Systems play a crucial role in RV stability. They offer a reliable way to keep your RV level. This system uses hydraulic jacks to adjust the RV’s position. A level RV ensures proper operation of appliances. It also makes sleeping and walking inside the RV more comfortable.
Stability is vital for safety. A stable RV reduces the risk of accidents. It prevents items from shifting or falling inside the RV. The Power Gear system allows for quick adjustments. You can level your RV with just a push of a button.
Common Models And Features
Power Gear offers various models with unique features. Below is a table summarizing some common models and their features:
| Model | Features |
|---|---|
| Power Gear 500082 | Automatic leveling, Touchpad control, Hydraulic jacks |
| Power Gear 500567 | Manual leveling, LED indicators, Durable construction |
| Power Gear 500359 | Hybrid system, Easy installation, Wireless remote |
Some models offer automatic leveling for ease of use. Others include manual controls for more precise adjustments. Advanced models may feature touchpad controls or wireless remotes.
Here are some common features:
- Hydraulic jacks
- Touchpad control
- LED indicators
- Durable construction
- Wireless remote
Choosing the right model depends on your needs. Consider what features are most important for your RV experience.
Initial Setup Precautions
Setting up your Power Gear Leveling System is crucial for safe operations. Ensuring the initial setup is done correctly prevents issues down the road. This section will guide you through important precautions.
Correct Vehicle Positioning
Proper positioning of your vehicle is the first step. Make sure your vehicle is on a flat and stable surface. Avoid parking on sloped or uneven ground as this can affect the leveling process.
- Park your vehicle on a flat surface.
- Ensure the parking brake is engaged.
- Turn off the engine before starting the setup.
Understanding System Indicators
Familiarize yourself with the system indicators. These indicators provide important information about the status of your leveling system.
| Indicator | Meaning |
|---|---|
| Power | The system is on and ready. |
| Fault | There is an issue with the system. |
| Level | The vehicle is level. |
Always monitor these indicators during the setup process. They help you identify if something goes wrong. Knowing what each light means can save you time and effort.
Identifying Common Issues
The Power Gear Leveling System is vital for RV stability. Problems can occur, affecting your experience. Identifying common issues helps in troubleshooting effectively. Here, we will discuss three main problems: unresponsive controls, uneven leveling, and system error messages.
Unresponsive Controls
Unresponsive controls can be frustrating. This issue often relates to power supply problems. Check if the system is getting power. Look at the fuses and circuit breakers. Are they in good condition? If the fuses are blown, replace them immediately.
Another cause can be faulty wiring. Inspect the wires for any damage. Loose connections can also lead to unresponsive controls. Tighten any loose connections you find.
Uneven Leveling
Uneven leveling can affect your comfort. First, check the hydraulic fluid levels. Low fluid can cause uneven leveling. Refill the fluid if needed.
Next, inspect the jacks. Are they extending and retracting properly? If not, the problem might be with the hydraulic system. Look for leaks in the hydraulic lines. A leak can cause uneven leveling. Fix any leaks to restore proper function.
System Error Messages
System error messages can be confusing. Common messages include “Low Voltage” or “Sensor Failure.”
For “Low Voltage” errors, check the battery. Is it fully charged? If not, charge the battery.
For “Sensor Failure” errors, inspect the sensors. Are they clean and properly connected? Dirty or disconnected sensors can cause errors. Clean and reconnect the sensors.
| Issue | Possible Causes | Solutions |
|---|---|---|
| Unresponsive Controls | Power supply, faulty wiring | Check power, replace fuses, inspect wiring |
| Uneven Leveling | Low hydraulic fluid, hydraulic leaks | Refill fluid, fix leaks |
| System Error Messages | Low battery, dirty sensors | Charge battery, clean sensors |
Basic Power Gear Leveling System Troubleshooting Techniques
Experiencing issues with your Power Gear Leveling System can be frustrating. Knowing some basic troubleshooting techniques can save time and effort. This guide will cover essential steps to get your system back on track.
Power Reset Process
Sometimes, a simple power reset can solve many issues. To perform a power reset, follow these steps:
- Turn off the main power switch.
- Disconnect the system from the power source.
- Wait for at least 30 seconds.
- Reconnect the system to the power source.
- Turn on the main power switch.
This process can help reboot the system and clear any temporary glitches. Always ensure your power connections are secure.
Manual Override Procedures
If the power reset does not work, use manual override procedures. Follow these steps to manually override your Power Gear Leveling System:
- Locate the manual override lever or switch.
- Engage the manual override by turning the lever or switch.
- Manually extend or retract the leveling jacks.
- Once adjusted, disengage the manual override.
Consult your system’s manual for specific instructions on manual override. This process ensures you can level your vehicle manually.
| Step | Action |
|---|---|
| 1 | Locate manual override lever |
| 2 | Engage manual override |
| 3 | Adjust leveling jacks |
| 4 | Disengage manual override |
These basic troubleshooting techniques can resolve common issues with your Power Gear Leveling System. Always keep your system’s manual handy for reference.
Electrical System Checks
Ensuring your Power Gear leveling system works perfectly requires regular electrical system checks. These checks help identify and fix issues before they become major problems. This guide will help you perform these checks efficiently.
Battery Health And Connections
First, check the health of your battery. A weak battery can cause the leveling system to malfunction. Use a voltmeter to measure the voltage. The battery should read between 12.4 and 12.7 volts when fully charged.
Next, inspect the battery connections. Loose or corroded terminals can disrupt the power flow. Follow these steps:
- Turn off the vehicle.
- Remove the battery cables.
- Clean the terminals with a wire brush.
- Reattach the cables securely.
Ensure the connections are tight. Loose connections can lead to power loss.
Circuit Breaker And Fuse Inspection
The circuit breaker and fuses protect your system from electrical faults. Start with the circuit breaker. Locate it in the electrical panel. Here’s what to do:
- Check if the breaker is tripped.
- If tripped, reset it by flipping it off and on.
- Replace if the breaker trips again.
Next, inspect the fuses. Fuses are usually in the same panel as the circuit breaker. Follow these steps:
- Turn off the vehicle.
- Remove the fuse cover.
- Pull out each fuse and check for a broken wire inside.
- Replace any blown fuses with ones of the same rating.
Properly functioning fuses and circuit breakers ensure your system’s reliability. Regular inspections can prevent unexpected issues.
Hydraulic System Maintenance
Maintaining the hydraulic system in your Power Gear Leveling System is crucial. Regular checks can prevent major issues. This ensures smooth and efficient operation. Let’s dive into some key maintenance tasks.
Fluid Level Checks
Checking the hydraulic fluid levels is essential. Low fluid can cause the system to malfunction. Follow these steps to check the fluid level:
- Park your vehicle on a flat surface.
- Turn off the engine and allow it to cool.
- Locate the hydraulic reservoir.
- Remove the cap and check the fluid level using the dipstick.
- Add fluid if necessary, ensuring you use the recommended type.
Keep the fluid level between the minimum and maximum marks. This ensures optimal performance. Regular checks can prevent unexpected breakdowns.
Leak Detection And Repair
Leaks in the hydraulic system can lead to serious issues. Detecting and repairing leaks early is important. Here’s how to inspect for leaks:
- Inspect the hydraulic lines and connections.
- Look for wet spots or puddles under the vehicle.
- Check for any unusual noises during operation.
If you find a leak, follow these steps:
- Identify the source of the leak.
- Tighten any loose connections.
- Replace damaged hoses or fittings.
- Clean the area and recheck for leaks.
Regular inspections can help identify leaks early. This prevents larger, more expensive problems.
| Maintenance Task | Recommended Frequency |
|---|---|
| Check Fluid Levels | Monthly |
| Inspect for Leaks | Quarterly |
By following these maintenance tips, you ensure a longer life for your hydraulic system. Regular checks and repairs save you from costly fixes.
Sensor Calibration And Alignment
The Power Gear Leveling System is essential for RV stability. Proper sensor calibration and alignment ensure the system’s accuracy. This guide helps troubleshoot common issues.
Step-by-step Calibration

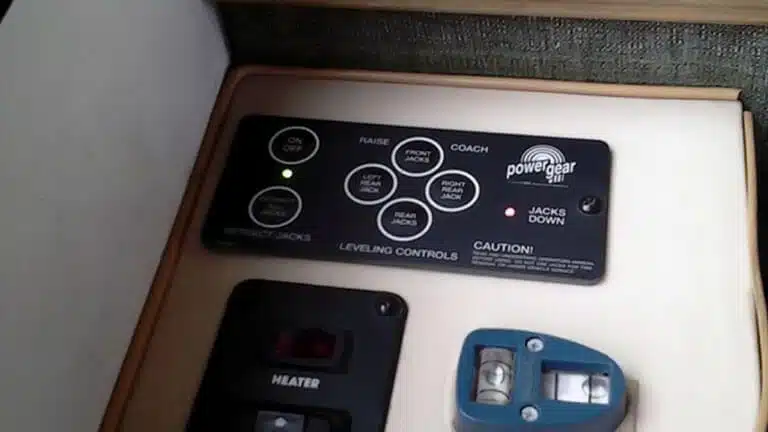

- Locate the control panel: Find the leveling system’s control panel in your RV.
- Access calibration mode: Press the designated buttons to enter calibration mode.
- Level the RV: Use manual controls to level your RV as precisely as possible.
- Save settings: Press the save button to store the calibration settings.
- Exit calibration mode: Press the exit button to leave calibration mode.
Ensuring Sensor Accuracy
Accuracy is vital for the sensor’s performance. Follow these steps to ensure accuracy:
- Check sensor placement: Ensure sensors are securely mounted and not obstructed.
- Clean sensors: Remove any dirt or debris from the sensor surfaces.
- Test sensor response: Use the control panel to test sensor readings.
- Recalibrate if necessary: If readings are off, repeat the calibration process.
Proper sensor calibration and alignment are crucial for your Power Gear Leveling System. Follow these steps to maintain optimal performance.
Advanced Fixes For Persistent Issues
When dealing with the Power Gear Leveling System, some issues persist despite basic troubleshooting. These advanced fixes can help resolve stubborn problems. Let’s explore advanced methods to ensure your system works efficiently.
When To Seek Professional Help
Sometimes, DIY fixes aren’t enough. Knowing when to seek expert help can save time and money.
- Electrical Issues: If you notice burned wires or smell burning, call a professional.
- Hydraulic Leaks: Leaks in hydraulic lines require specialized tools and skills to fix.
- Software Glitches: Complex software problems often need expert diagnosis and reprogramming.
Upgrading System Components
Older systems might need component upgrades. Upgrading can improve performance and reliability.
| Component | Reason for Upgrade |
|---|---|
| Control Panel | Newer panels offer better diagnostics and user interfaces. |
| Hydraulic Pumps | Advanced pumps provide more consistent pressure and efficiency. |
| Actuators | Modern actuators are more durable and responsive. |
Consider these upgrades to enhance your system’s functionality and longevity.
Preventative Measures And Best Practices
The Power Gear Leveling System ensures your RV remains stable. To keep it running smoothly, follow these preventative measures and best practices. They help avoid costly repairs and downtime.
Regular Maintenance Schedule
Establishing a regular maintenance schedule is key. Inspect the system monthly for any visible wear or damage. Check the hydraulic fluid levels frequently. Ensure they are within the recommended range. Also, lubricate moving parts to reduce friction and wear.
Here’s a simple maintenance checklist:
- Inspect hydraulic lines and connections.
- Check fluid levels.
- Lubricate moving parts.
- Test the system operation.
User Training And Resources
Proper user training and resources are essential. They ensure safe and effective operation of the leveling system. Provide users with comprehensive manuals and guides.
Consider these training resources:
- Interactive video tutorials.
- Step-by-step written guides.
- On-site training sessions.
Training should cover:
- Basic system operation.
- Troubleshooting common issues.
- Safety protocols.
Make these resources easily accessible. Keep a copy inside the RV. This ensures users can refer to them anytime.
Frequently Asked Questions
How To Reset Power Gear Leveling System?
To reset, turn off the system, then press and hold the “Auto” button until the lights flash.
Why Is My Leveling System Not Responding?
Check the power supply and fuses. Inspect for loose or damaged wiring connections.
What Does Blinking Lights On Control Panel Mean?
Blinking lights indicate an error. Refer to the user manual to identify and resolve the specific error code.
How To Manually Retract Power Gear Jacks?
Use the manual override feature. Consult your user manual for specific instructions on how to engage it.
Can Low Hydraulic Fluid Affect Leveling?
Yes, low hydraulic fluid can prevent the jacks from extending or retracting properly. Always check and refill as needed.
Conclusion
Mastering Power Gear leveling system troubleshooting ensures smooth RV adventures. Follow our guide for a hassle-free experience. Keep your system in top condition with regular maintenance. Address issues promptly to avoid bigger problems. Stay informed and enjoy worry-free travels. Safe travels and happy RVing!
